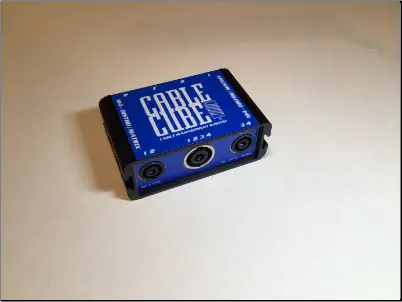

M4-Distro/Matrix Speaker Cable Break-Out Box SKU# 10147

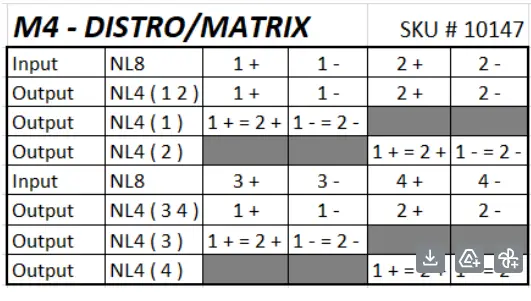

M4 DISTRO/MATRIX is similar to the DISTRO/MATRIX with the exception of the four (4) NL4 Neutrik breakout connectors opposite the NL8 input connector. Each of the NL8 contact pairs independently connect to one (1) of the four NL4 connectors opposite the NL8 input connector. Â
Each of these NL4 connectors have Pin1+ parallel connected to Pin 2+ & their Pin 1- parallel connected to Pin 2- for use specifically for the D &B audio Technik floor monitor speaker. The NL4’s on each side of the NL8 are each connected to one half of the NL8 respectively just like the Matrix product. Â
If nothing is connected to the NL8 you could use this product as two independent M4 DISTRO’s by connecting to the NL4’s on each side of the NL8Â
Limited 5 years Manufacturer Warranty
