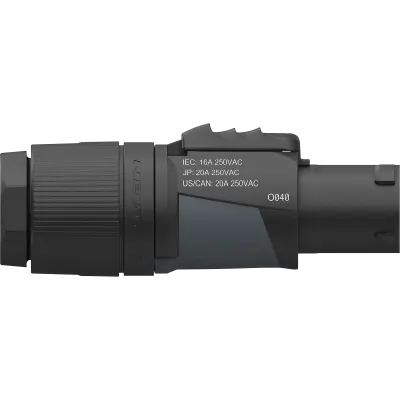

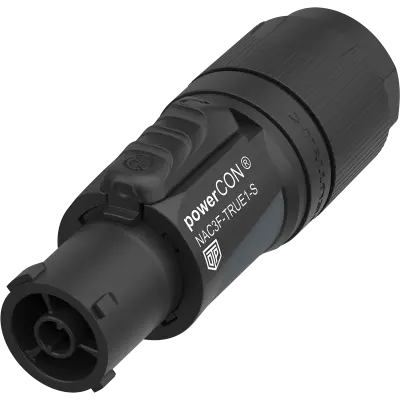

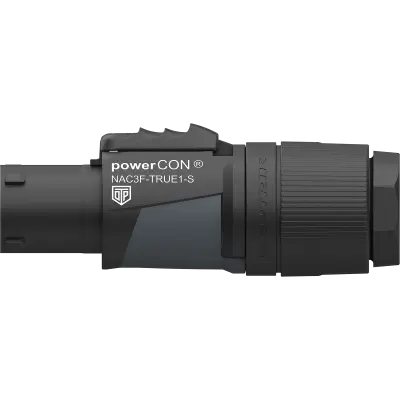

Neutrik NAC3F-TRUE1-S powerCON® TRUE1 Female Locking Mains Connector SKU# NAC3F-TRUE1-S
Neutrik NAC3F-TRUE1-S powerCON® TRUE1, Neutrik took up the challenge and developed a new line of TRUE OUTDOOR PROTECTION (TOP) products for demanding outdoor applications. This new range includes the popular powerCON® TRUE1, etherCON® and XLR series.
The powerCON® TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON® TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features
- Heavy duty sealed power connector for harsh and demanding environment
- Uses high impact UV-resistant materials
- Lockable single phase connector
- Extremely robust and reliable
- ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
- UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
- UL Certified According to UL 498
- IP65 and IP67 (mated or with closed cap)
- True mains connector with breaking capacity (CBC)
- Easy and reliable twist lock system

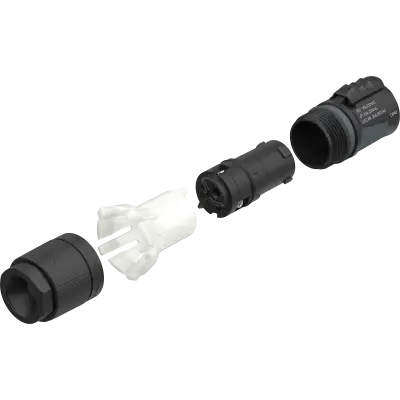

- Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 – 0.47 inches)
Specifications
Product
- Connector series: powerCON® TRUE1
Electrical
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: 4 kVdc / 2.8 kVac
- Insulation resistance: >0.1GΩ (after damp and heat test IEC 68-2-30)
- Number of electrical contacts: 2 + PE
- Rating ULC / Canada: 20 A / 250 V AC according to UL 60320-1, 20 A / 250 V AC according to CSA C22.2 No. 60320-1, 20A/ 250 V AC according to UL 498
Mechanical
- Cable O.D.: 10 - 16 mm (0.39 – 0.63 inches)
- Lifetime: > 5000 mating cycles
- Wiresize (mm²): 1.0 – 2.5mm²
- Wiresize: 14 - 12 AWG
Material
- Contact plating: 2 μm Ag
- Locking element: Polyamide (PA 66)
- Contacts: Copper Alloy
- Insert: Polyamide (PA6.6)
- Shell: Polyamide (PA 66)
- Strain relief: Polyketone
Environmental
- Flammability: UL94: V-0
- Protection class: IP 65 / 67 (mated or with closed caps)
- UV resistance: F1 rated material withstands UV exposure
- Temperature range: -30°C to +80°C according to IEC 61984, -5°C to +40°C according to IEC 60320-1
