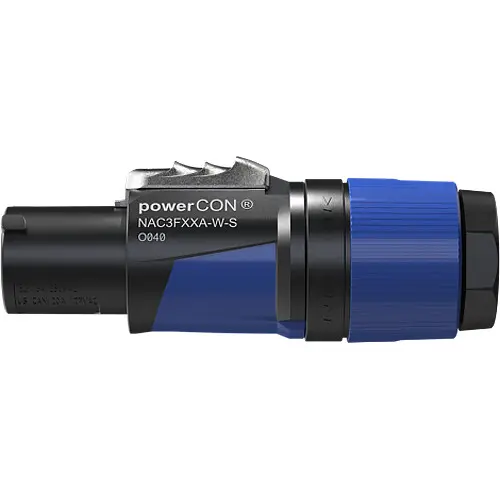

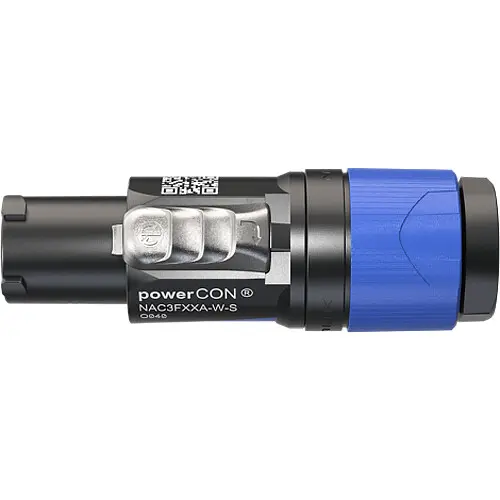

Neutrik NAC3FXXA-W-S powerCON® Lockable Power Connector (Blue) SKU# NAC3FXXA-W-S
For connecting power within nonideal environments, the NAC3FXXA-W-S powerCON® Lockable Power Connector by Neutrik is a safe power-coupling solution. Safely connect power cables with the twist-and-lock system. This model is a locking AC mains cable connector compatible with 6-12mm diameter cables. The connector has a blue color that indicates power-in. When paired with powerCON® XX series receptacles, this unit has circuit-breaking capability. The slip-proof two-component molded housing makes the connector suitable for demanding environments. Utilize the built-in strain relief to prevent accidental disconnection.
Features
- IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
UL US 498 / UL CA 498 - Ergonomic design with slip-proof two-component molded housing
- Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Superior NEUTRIK quality standard, extremely robust and reliable
- Easy and reliable twist lock system
- Improved kink protection by two-component bushing
Specifications
Product
- Connector series: powerCON® blue/grey
Electrical
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: > 3 kVac (after mating cycles)
- Insulation resistance: > 10 GΩ (initially)
- Number of electrical contacts: 2 + PE
- Rating ULC / Canada: cUL 60320-1: 20 A 127 V AC, ULC 498: 20 A 127 V AC, UL CA 498: 20 A 127 V AC
Mechanical
- Cable O.D.: 6 - 12 mm
- Lifetime: Typically 5’000 mating cycles
- Wiresize (mm²): 1.5 – 2.5 mm²
- Wiresize (AWG): 16 – 12 AWG
- Locking device: Twist lock
- Termination: Screw type terminals
Material
- Contact plating: Ag
- Contacts: Copper Alloy
- Insert: Polyamide (PA6.6)
- Locking element: Zinc diecast
- Shell: Polyamide (PA6) / TPE
- Strain relief: Polyketone
- Bushing: Polypropylene / TPE
Environmental
- Temperature range: -33 °C to +80 °C
- Protection class: IP20
- Flammability acc. to UL94: V-0
