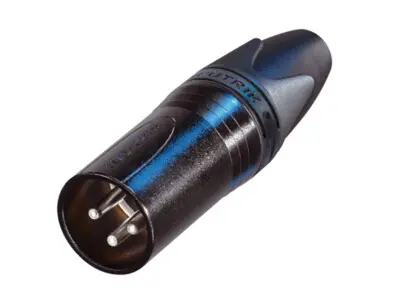

Neutrik NC3MXX-BAG 3-Pole XLR Male Cable Connector, Black Housing, Silver Contacts SKU# NC3MXX-BAG
Explore the advanced features of the NC3MXX-BAG 3-Pole XLR Male Cable Connector, the latest evolution in the globally recognized standard of XLR cable connectors. This innovative product, with its sleek black housing and silver contacts, is the successor to the renowned X series. It boasts a plethora of enhancements designed to increase reliability, simplify assembly, and enhance contact integrity.
The NC3MXX-BAG 3-Pole XLR Male Cable Connector is meticulously engineered to provide superior cable strain relief, ensuring longevity and optimal performance. Its robust construction and high-quality silver contacts ensure a stable, uninterrupted connection, making it an essential tool for all your audio and video equipment needs.
Whether you're a professional in the audio-visual industry or an enthusiast seeking the best in connectivity solutions, the NC3MXX-BAG 3-Pole XLR Male Cable Connector is a testament to technological advancement and high-quality design. Experience the difference with this next-generation XLR cable connector, designed to meet and exceed your expectations in performance and reliability.
Features
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, long lasting and dependable
- Internal thread on shell is well protected against any damage
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
- Ensure top-notch audio with this Neutrik XLR male connector, perfect for pro cable builds.
- Get superior signal quality with silver contacts on this durable XLR audio connector.
- This Neutrik NC3MXX-BAG XLR connector offers reliable performance for any audio setup.
- Built tough: Features a black housing and robust design for long-lasting cable connections.
- Achieve secure connections; this XLR cable connector fits cables 3.5 - 8.0 mm in diameter.
- Enjoy wide compatibility; solder contacts make wiring easy for custom audio cables
Specifications
Product
- Connection Type: XLR
- Gender: male
Electrical
- Capacitance Between Contacts: < / = 4 pF
- Contact Resistance: < / = 3 megohms (inner)
- Dielectric Strength: 1.5 kVdc
- Insulation Resistance: > 10 Gigohms (initial)
- Rated Current per Contact: 16 A
- Rated Voltage: < 50 V
Mechanical
- Cable O.D.: 3.5 - 8.0 mm
- Insertion Force: < / = 20 N
- Withdrawal Force: < / = 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: max. 2.5 sq. mm
- Wiresize: max. 14 AWG
- Wiring: Solder contacts
- Locking Device: Latch lock
Material
- Boot: Polyurethane
- Contact Plating: 2 µm Ag
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking Element: Zinc diecast (ZnAl4Cu1)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell Plating: Black chromium
- Strain Relief: Polyacetal (POM)
Environmental
- Flammability: UL 94 HB
- Standard Compliance: IEC 61076-2-103
- Protection Class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature Range: -30 °C to +80 °C
Limited 180-Day Manufacturer Warranty
