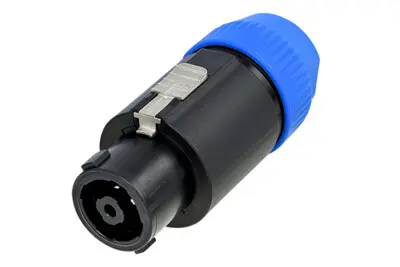

Neutrik NL8FC 8-Pole speakON® Connector w/Latch SKU# NL8FC
Neutrik's NL8FC is an 8 pole cable connector, latch lock, chuck type strain relief for cables 8 - 20 mm diameter, 30 A continuous per contact
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Features
- Current rating 30 A rms continuous
- Reliable and robust, easy and fast to assemble
- Contacts are touch proof and meet all safety requirements (IEC, UL, CSA)
- Accurate and dependable twist lock latching system "Quick Lock"
- High impact material for insert and housing, long-lasting and dependable
- Chuck type strain relief system for secure clamping of cable
Specifications
Product
- Connection Type: speakON®
- Gender: female
Electrical
- Contact resistance: ≤ 3 mΩ (after lifetime)
- Dielectric strength: 4kV (peak)
- Insulation resistance: > 1 GΩ (after dampheat)
- Rated current per contact: =30 A rms continuous
- Rated current per contact: 40 A audiosignal, duty cycle 50 %
- Rated voltage: 250 V ac
- Attention: speakON® is NOT to be used as an AC mains or power supply connector!
Mechanical
- Cable O.D. range: 8 - 20 mm
- Cable retention: ≥ 220 N (subject to cable O.D. and material)
- Lifetime: > 5000 mating cycles
- Wiresize: 4 mm²
- Wiresize: 12 AWG
- Wiring: screw type terminals
- Locking device: Quick Lock (latch)
Material
- Contact plating: 4 µm Ag
- Contacts: Brass (CuZn39Pb3)
- Insert: PBTP 20 % GR
- Locking element: Zinc diecast (ZnAl4Cu1)
- Shell: Polyamide (PA 6 30 % GR)
- Strain relief: Polyacetal (POM)
Environmental
- Flammability: UL 94 HB
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
Limited 180-Day Manufacturer Warranty
