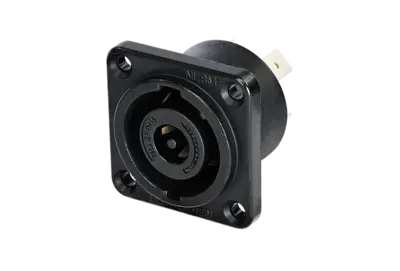

Neutrik NLT8MPXX-BAG 8 Pole speakON® Male Chassis Connector, Metal Square Black G-size Housing, Countersunk thru holes, 1/4“ flat tabs SKU# NLT8MPXX-BAG
Neutrik NLT8MPXX-BAG 8 pole male chassis connector, metal square black G-size housing, countersunk thru holes, 1/4“ flat tabs
This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.
The speakON® STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.
Features
- IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
- Current rating 30 A rms
- Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
- Uses precise “Quick Lock” system
- Compatible with complete speakON® 8 pole product series
Specifications
Product
- Gender: male
Electrical
- Contact resistance: < 2 mΩ
- Dielectric strength: 1.5 kVac
- Insulation resistance: > 0.1 GΩ (after dampheat)
- Rated current per contact: 30 A rms continuous (acc. to IEC 61984)
- Rated voltage: 250 V ac
Attention: speakON® is NOT to be used as an mains or power supply connector (AC / DC)!
Material
- Contact plating: Ag
- Contacts: Copper Alloy
- Shell: Zinc diecast, black chrome plated
- Insert: Polyamide (PA 6.6)
- Shell coating: Black KTL
Environmental
- Temperature range: -30 °C to +80 °C
- Flammability: UL 94 V-0
- Protection class: IP 50 (mated condition)
Limited 180-Day Manufacturer Warranty
