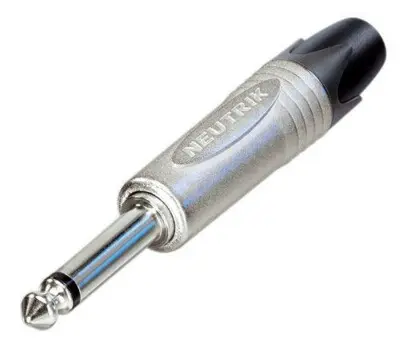

Neutrik NP2X 2-Pole 1/4" Male Professional Phone Plug, Nickel Shell, Nickel Contacts SKU# NP2X
Why settle for less when you can have the best. Neutrik's NP2X 2-Pole 1/4" Male Professional Phone Plug, with its nickel shell and nickel contacts, is a testament to Neutrik's commitment to quality and durability. This high-quality phone plug is designed to meet the rigorous demands of professional audio and video equipment, musical instruments, and other applications that require a reliable, sturdy connection.
The NP2X is more than just a phone plug; it's a revolution in design. It improves upon the existing C series by offering the thinnest A-gauge 1/4" plug available on the market, complete with Neutrik's unique chuck type strain relief. This feature ensures a secure connection, reducing the risk of disconnection or damage to the cable.
The slimline shell, measuring a mere 14.5mm in width, is designed to meet the latest requirements for high-density jackfields, with a 15.88mm jack pitch. This compact design allows for maximum space efficiency without compromising on performance or quality.
One of the standout features of the NP2X is its precise, machined one-piece tip contact. This design, devoid of rivets, is unique to Neutrik and ensures a seamless connection every time. It eliminates the risk of hooking up in a socket or breaking off the tip, providing a reliable and consistent performance.
The NP2X 2-Pole 1/4" Male Professional Phone Plug is versatile and serves a wide range of applications. Whether you're connecting guitar applications, audio cables, snakes, speakers, amplifiers, or mixing desks, this plug is the reliable choice for all your professional audio and video needs.
Features
- Extra slim 1/4" plug for highest packing density
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
- Get superior sound quality with this professional Neutrik 1/4" phone plug.
- Durable nickel contacts ensure a reliable audio connection every single time.
- This male audio connector is perfect for custom cable builds and repairs.
- Wide compatibility: Works great with amps, mixers, and pro audio equipment.
- Shielded design minimizes interference, delivering pristine audio clarity.
- Built to last: Neutrik connectors offer exceptional durability for frequent use.
Specifications
Product
- Connection Type: Plug
- Gender: male
Electrical
- Contact resistance: depends on mating connector mΩ
- Dielectric Strength:Â 1 kVdc
- Insulation Resistance: > > 2 (initial) GΩ ≥ 1 GΩ (after damp heat test)
- Rated Current per Contact:Â depends on mating connector A
- Rated voltage: < 50 V
Mechanical
- Cable O.D.:Â 4 - 7 mm
- Lifetime: > 1000 mating cycles
- Wiresize: 1 mm²
- Wiresize:Â 18 AWG
- Wiring: Solder contacts
Material
- Bushing:Â Polyacetal (POM) + PU
- Contact plating: 2 µm Ni (Su)
- Contacts:Â Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell Plating:Â Nickel
- Strain Relief: Polyacetal (POM)
Environmental
- Standard Compliance:Â IEC 60603-11 / EIA RS-453
- Solderability:Â Complies with IEC 68-2-20
- Temperature Range: -20 °C to +65 °C
Limited 180-Day Manufacturer Warranty
