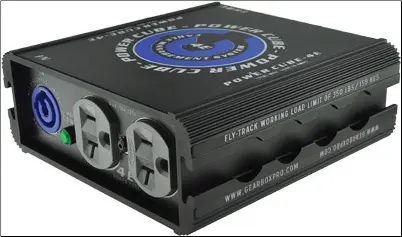

Power Cube® 4E-L Soca Power Cube®Power Distribution SKU# 22720

Power Cube® 4E model is a passive A/C Splitter device, containing no active components or supplementary circuit interrupter (breaker) devices. A/C is supplied to the Power Cube® 4E through a 20-Amp powerCON® NAC3NPA inlet connector, directly wired to a 20-Amp powerCON® NAC3MPB outlet. This permits multiple Power Cubes to be connected end to end on a single circuit.

All powerCON® inlets and outlets are parallel connected supporting a combined maximum electrical load of 12-16 amps depending on the rating of the power supply cord connected. On each side of the Power Cube 4E is an Edison 20-Amp T-Slot Duplex Receptacle for a total of four (4) Edison outlets. For desired ergonomic connectivity the 4E is available in right or left hand versions.
