Power Cube® 4HX Soca Power Cube®Power Distribution SKU# 23724
Power Cube® 4HX is a passive powerCON® (208-240 Volt A/C) Splitter device, containing no active components or supplementary circuit interrupter (breaker) devices inside.
For public safety, The 4HX uses our proprietary custom aluminum extrusion body with built in integrated Fly-Track. This makes it convenient to secure the box to lighting truss or speaker rigging with standard single stud rigging clips.

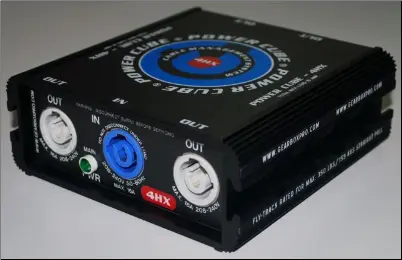

The supply inlet is a 20-Amp PowerCON NAC3MPA-1 connector that is parallel-connected with 12 Gauge wire to four (4) 20-Amp powerCON® NAC3MPB-1 outlets. On one end of the extruded housing is the powerCON® NAC3MPA-1 inlet with an NAC3MPB-1 outlet on each side of the inlet power connector.

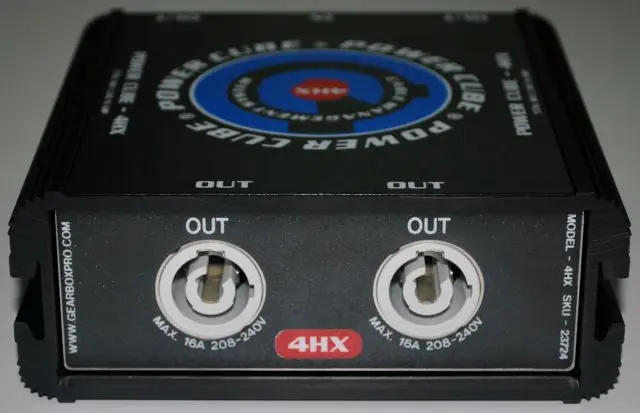

It also has a neon status indicator lamp, connected to the inlet connector. On the opposite end of the extrusion are the remaining two NAC3MPB-1 outlet connectors. Maximum Dimensions: 139.7mm (5.5”) L X 139.4mm (5.488”) W X 53.4mm (2.1”) H.
Limited 1 year Manufacturer Warranty
