Power Drop PD-3 Speaker Cable Break-Out-Box SKU# 22203
Power Drop Series of single Edison Duplex Outlets

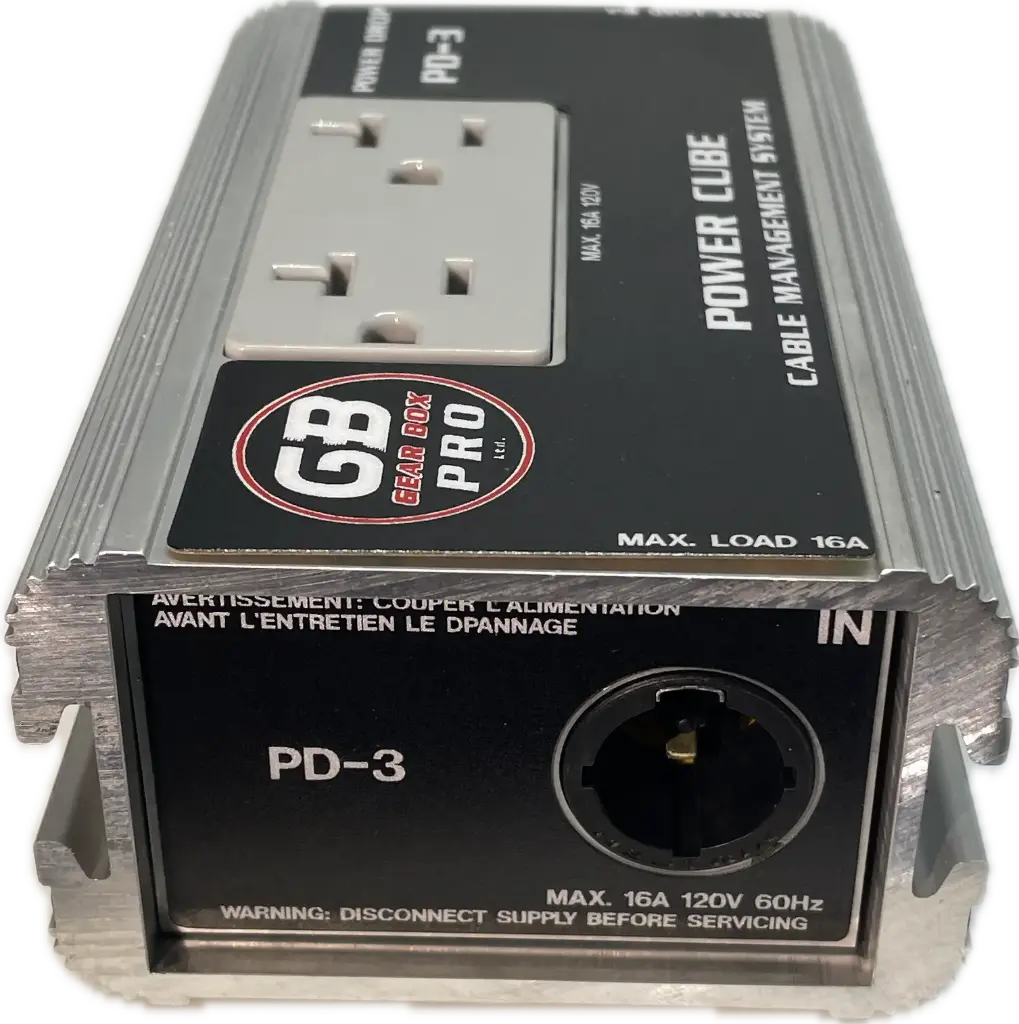

The PD-3 has an NAC3MPX True1 PowerCon inlet connector parallel connected to the Edison T-Slot U-ground Duplex and an NAC3FPX True1 PowerCon outlet connector for daisy chain connectivity. Electrically approved for US or Canada by special inspection.

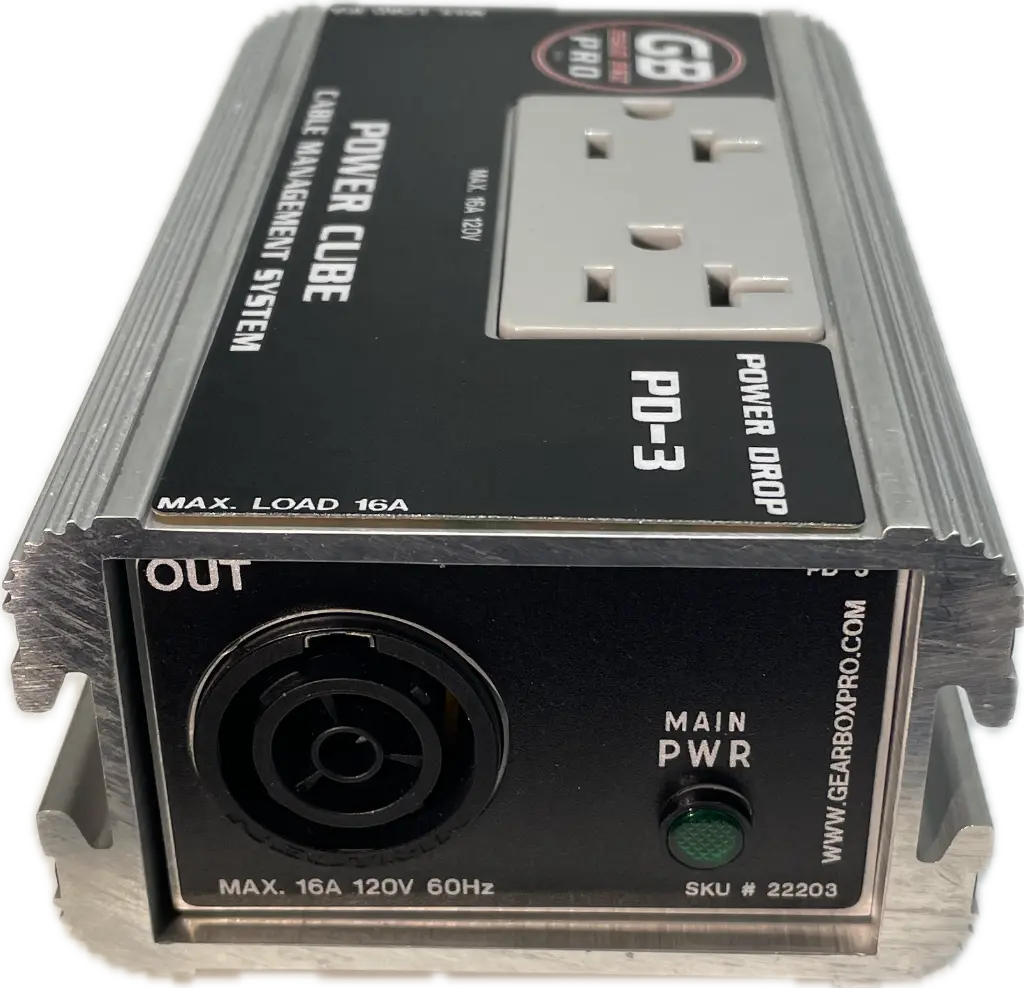

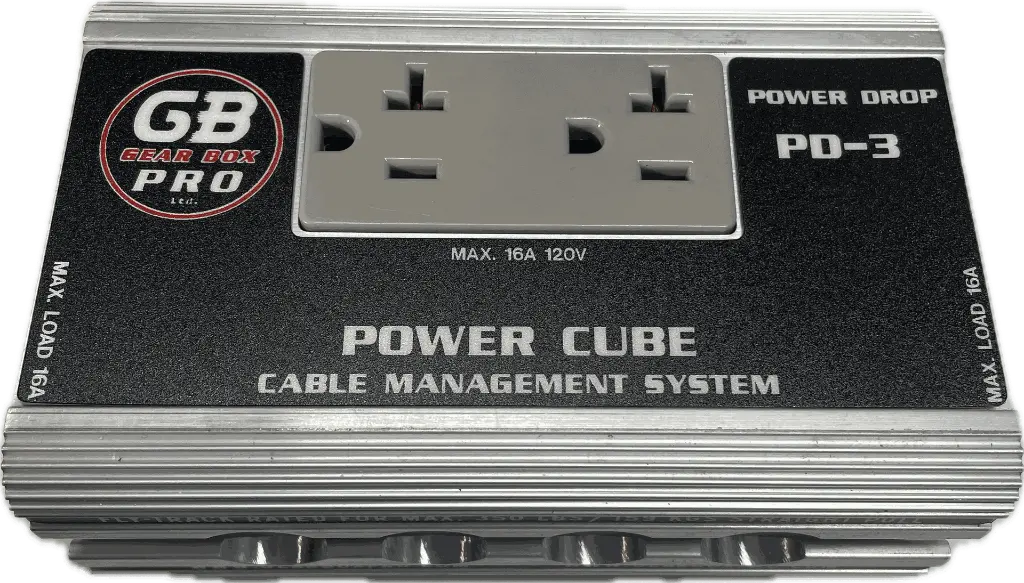

The PD-3 (Power Drop - 3) uses a regular PowerCon in and thru connector with a neon indicator lamp on the output side. A 15A push button breaker supplies the 120V power to a T-Slot U-ground Decora Duplex Receptacle on the top of the box for a recommended maximum load of 12 Amps applied to the Edison U-ground outlet.

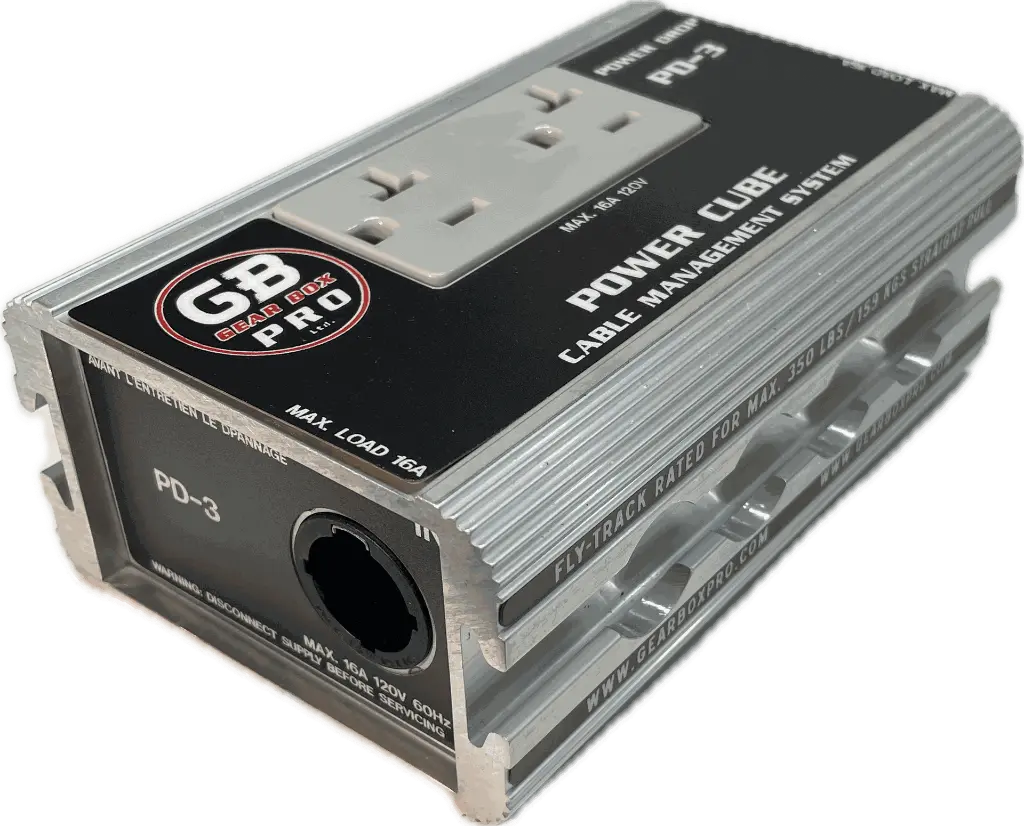

This extremely rugged aluminum enclosure includes the proprietary rigging track on the sides for safety when in overhead use. This makes power placement most convenient by utilizing various lengths of PowerCon cables.
Limited 1 year Manufacturer Warranty
