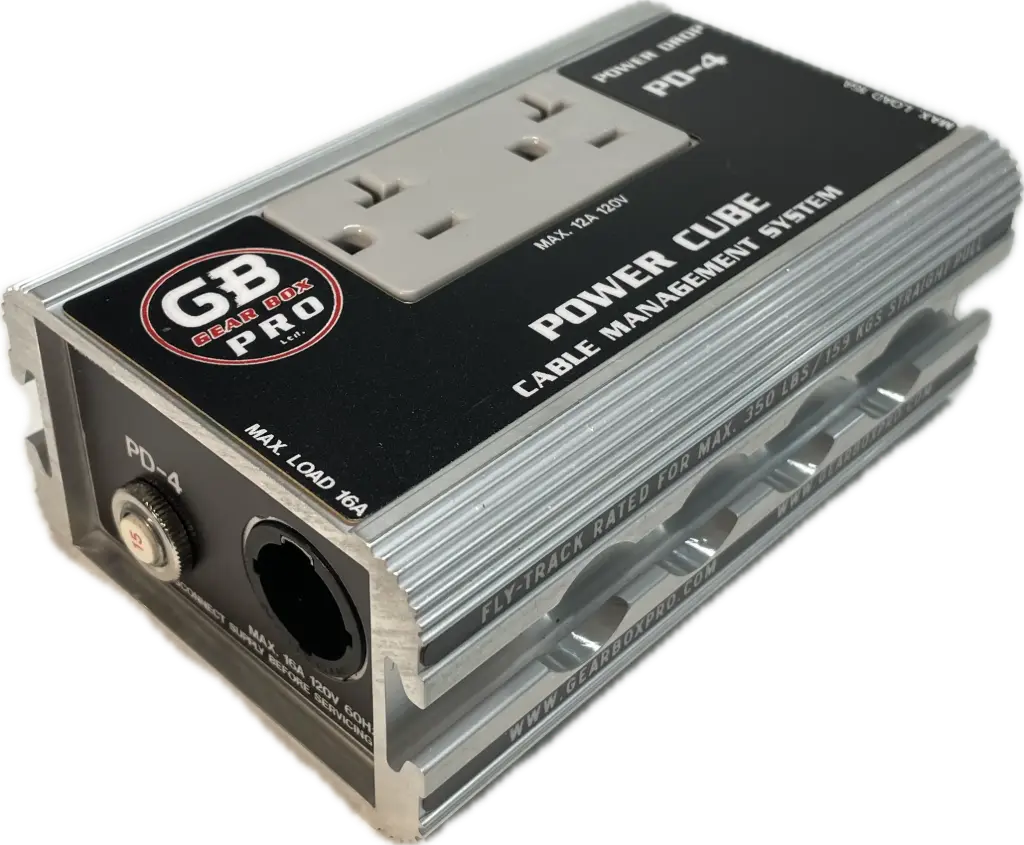

Power Drop PD-4 Speaker Cable Break-Out-Box SKU# 22204
Power Drop Series of single Edison Duplex Outlets

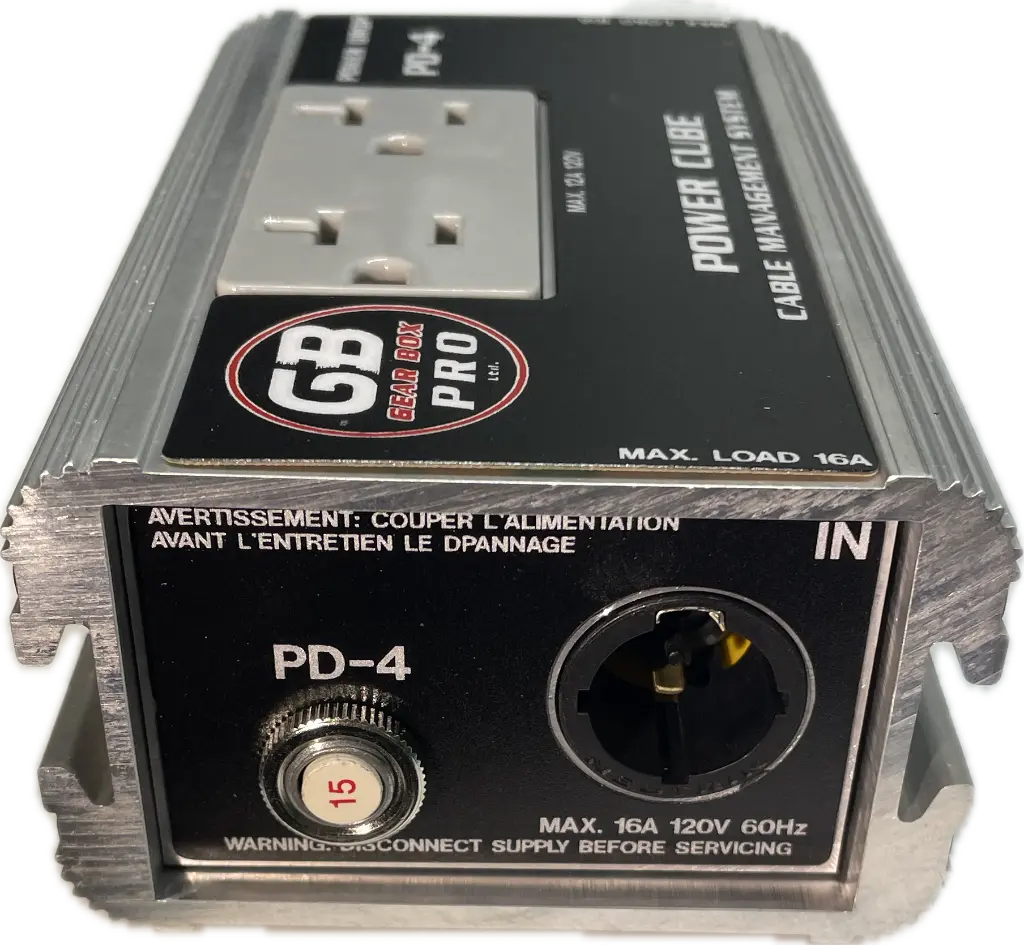

The PD-4 has an NAC3MPX True1 PowerCon inlet connector parallel connected to an NAC3FPX True1 PowerCon outlet connector for daisy chain connectivity. The Edison T-Slot Duplex Receptacle on the top of the box is current limited to a maximum recommended load of 12A supplied by the 15A push button circuit interrupter located near the supply inlet connector. Electrically approved for US or Canada by special inspection.

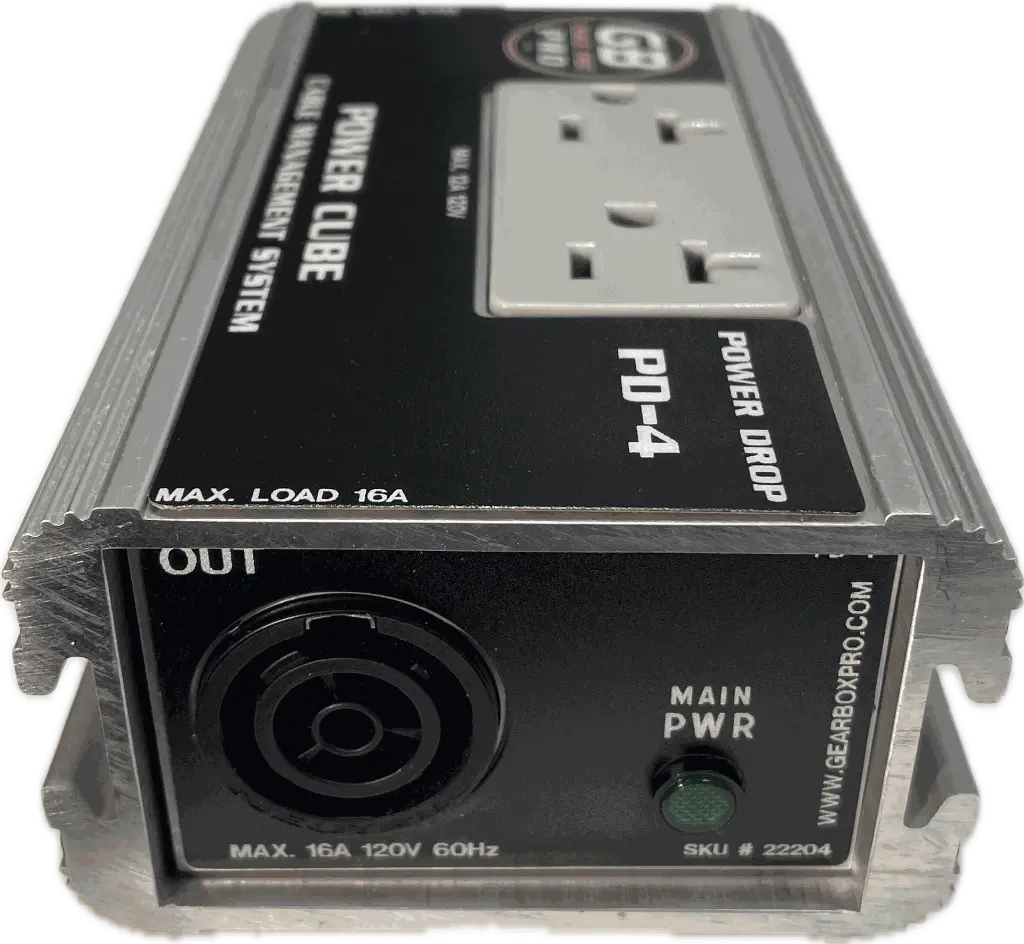

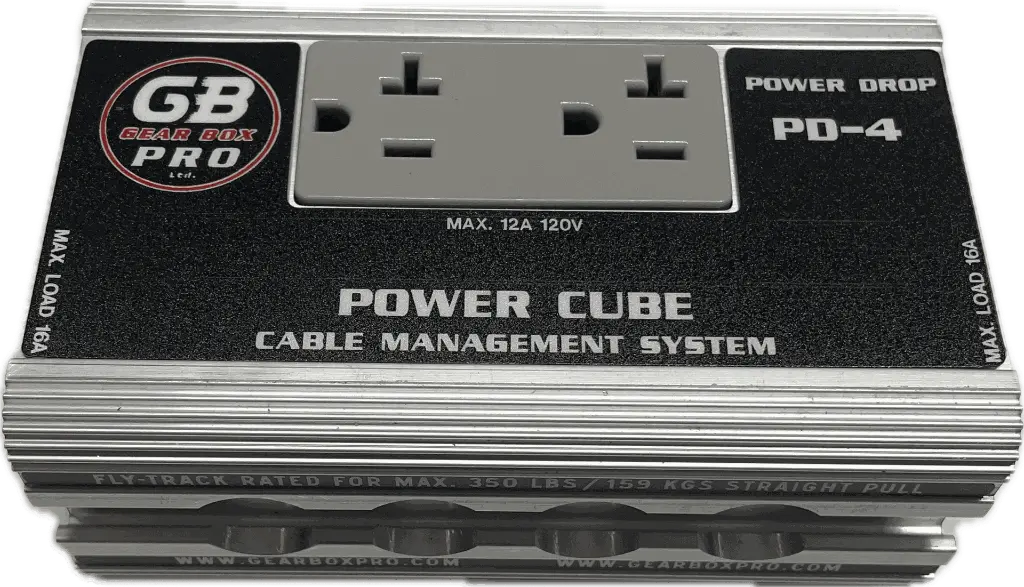

The PD-4 (Power Drop - 4) uses a True1 PowerCon inlet and thru outlet connector with a neon indicator lamp on the output side. The 120V supply provides power to a T-Slot U-ground Decora Duplex Receptacle on the top of the enclosure box with a recommended maximum load of 16 Amps applied to the Edison U-ground outlet.
This extremely rugged aluminum enclosure includes the proprietary integrated rigging track on the sides for safety when in overhead use. This makes power placement most convenient by utilizing various lengths of PowerCon cables.
Limited 1 year Manufacturer Warranty
