SLPi-232 Install Series SKU# SLPi-232

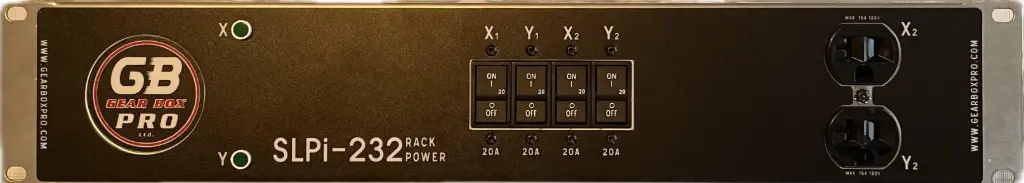

The SLPi-232 is a 19" rack mount 2U Power Distribution Unit (PDU) designed for permanent installations.   It is a hardwired electrical feed to 4 (Four 20A breakers located on the front panel).

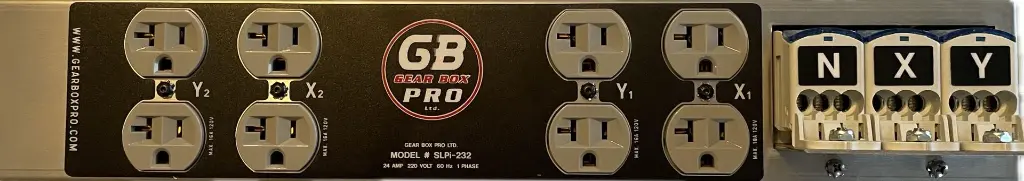

Breakers 'X1, X2, Y1 & Y2' each independently feed 4 (four) 20A T-slot duplex U-ground receptacles on the rear panel.

The X2 & Y2 breakers also feed a fifth split 20A T-slot duplex convenience receptacle on the front panel.  These  4 circuit breakers are switch breakers and can be used as control to power connected items on & off up to 40K cycles.

The main power connections are provided on the rear panel via three terminal blocks (ERICO Model UD80Arated at 85A 600V AC).  Each block represents Neutral, X, & Y power connections respectively.  Each independent terminal block provides three screw terminals connections for easy coupling or daisy chaining additional power units to a single main panel feeder breaker.

Each of these three terminal block screws can receive 10....4 AWG wire using a torque of 19.5 in-lbs or 3.5 N.m via a slotted screw head.  The coupling cabling may require additional strain relief holes to be punched in the Terminal Block cover, which has ample room.

The Terminal Block cover provides an 8-32 1/2' long stud for the Grounding connection.  The main electrical enclosure is 3-1/2" deep and the Terminal block enclosure (cover) adds another 4" in depth for a total of 7-1/2" in depth from the rear of the supporting rack rail.  The strain relief hole size, located on the very back of the terminal block cover, is 1.37" in Dia.  Cable strain relief is not included.

All Gear Box Power Products are electrically approved by special inspection.

Applications: Sound System Amplifier racks, UPS master controls for Commercial IT & Bitcoin mining computer racks
