Welcome to Gear Box Pro Ltd.
Cable Management Systems for Pro Sound Audio and Power Units

Reduce trip hazards with Cable Cube Gear Box Pro Ltd. designs, manufactures, and sells cable management systems for the entertainment industry.  Gear Box Pro Ltd specializes in cable management and distribution systems for audio, power, and lighting.

Gear Box Pro was birthed out of a vision of offering an alternative to self-created custom audio cables.  Through the use of proprietary technology, Gear Box Pro offers cable management system components that are smaller, reliable, more efficient, safe (power products verified by appropriate safety standards associations) and more cost effective than solutions traditionally utilized by the audio industry.

Check out our newest products

Gear Box Pro Gear Box Pro

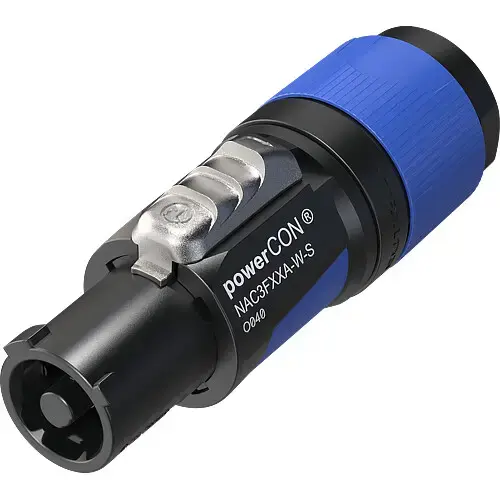

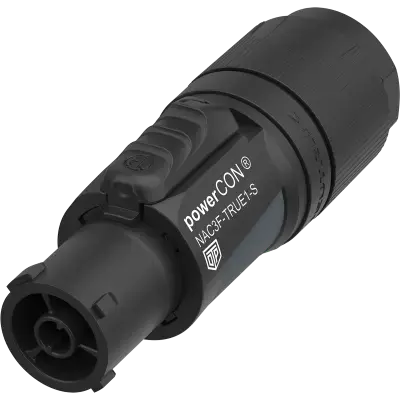

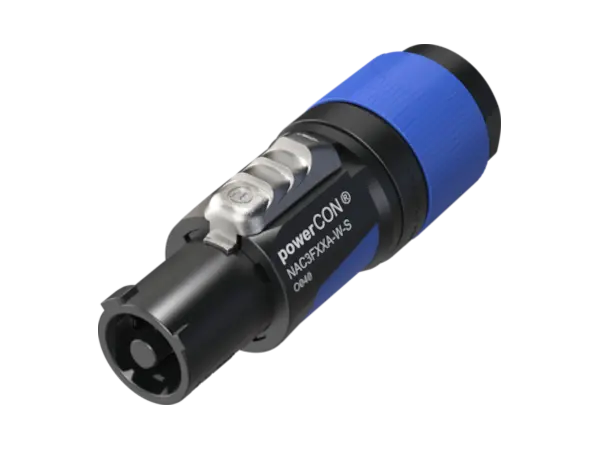

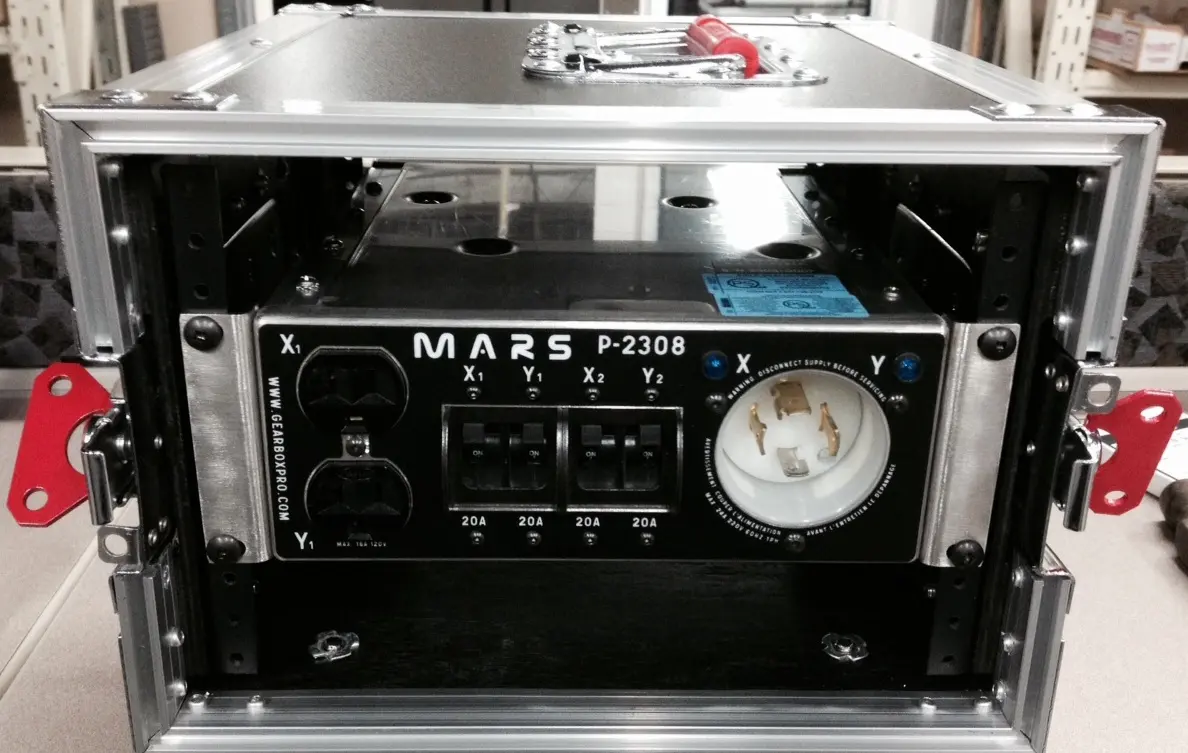

'Power Box' the NEW member of the Cable Cube Family provides a rugged 'Tour Grade' power quad box solution for stage and truss power distribution. Used with Powered Loudspeakers and modern Lighting fixtures using power-Con power connectors. For more information Click Here
Gear Box Pro Gear Box Pro

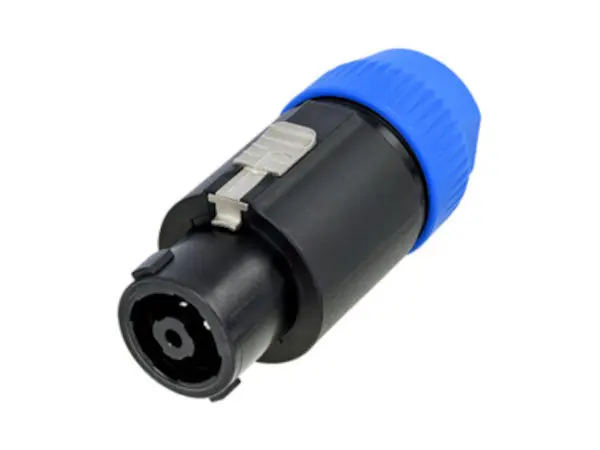

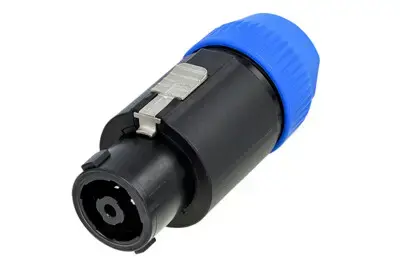

The SOCA / OCTO is a speaker cable splitter that uses a SOCA style connector (Male or Female) and breaks out to a pair of Neutrik NL8 connectors. One NL8 connector wired to the first 8 pins of the SOCA and the second NL8 connector wired to pin 9 through 18 of the SOCA. Click here for more

Gear Box Pro Gear Box Pro

The SOCA / MATRIX is a SOCA style connector that breaks out to four Neutrik NL4 connectors. Both new SOCA Cable Cube Products are surrounded by a heavy duty, rugged aluminum extruded box with a convenient integrated fly-track to secure them to truss or speaker bumpers. Click here for more

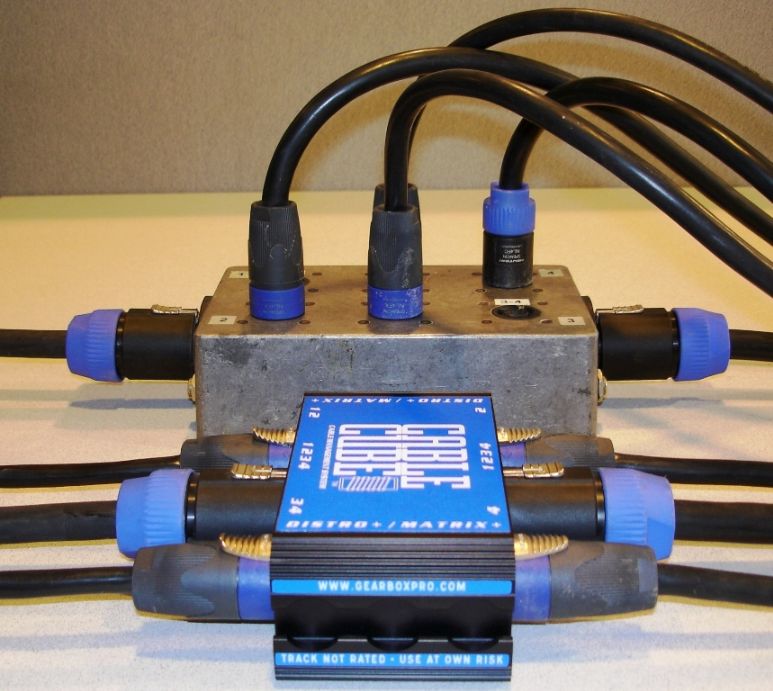

Gear Box Pro The previous alternative was hand made devices, poorly labelled, time consuming and expensive to build, prone to errors (e.g. polarity), considerably larger with a less than professional presentation.

Gear Box Pro are tough The All Terrain Solution

Reduce trip hazards with Cable Cube

Our cable management system components build confidence in your customer providing a rugged professional image with great versatility and value. Cable Cube™ products are made from aluminum, stainless steel and genuine Neutrik® components. They are built to withstand the typical abuse of the entertainment industry. Don't pack a show without them.

Gear Box Pro Our products are also very compact and light.

Cable solutions that will fit in the palm of your hand.

Visually discrete look on stage or in truss — size of a DI Box.

  • Integrated Track fits standard Fly-clips for rigging.
  • Bi-directionally functions as both cable splitters & combiners.
  • Quick multi-channel output connection for Amp racks.
  • Line Array speaker cable distribution — better than a splay.
  • Generates new and innovative cable routing solutions.
  • Optional RMK Rack Mount for increased versatility.
  • 16 different models to choose from!
  • Nearly impossible to break, virtually indestructible!
  • Cable management systems for your amplifier distribution needs
  • Cable management systems for stage monitor speaker cables
  • Cable management systems for touring rigs to keep speaker cables and audio cables organized
  • Cable management systems for power distribution
  • Custom cables and speaker cable splitter solutions
  • We use Neutrik connectors to build small, rugged speaker cable splitters and break out boxes
  • We use SOCA1 connectors combined with Neutrik connectors to build larger, rugged speaker cable splitters and break out boxes

Cable Cube is the first of many pro audio product lines Gear Box Pro is introducing. Cable management is a huge task when using amplifier distribution and multiple speakers in large setups such as touring rigs. Some speaker manufacturers are currently only providing one connector to daisy chain two speakers together, necessitating the design of our Cable Cube cable splitter solutions.

To illustrate the utility of our products, think of a home stereo system and all the components that require a power bar to plug into. Complex home systems and pro audio systems have increased needs for audio cabling from one device to another. Gear Box products manage audio cables much like a power bar manages the home stereo equipment power plugs. Cable cube is in effect a cable splitter that allows you to hook up one speaker cable to more than one speaker.

  • Cable Cube will help you distribute bi-amp stage monitor more effectively
  • Cable Cube will let you run one large cable to a break out box to power cluster arrays or distributed speaker array
  • Cable Cube will reduce the number of cables required to connect up your audio rig
SOCA connectors were originally developed by Socapex. While the original name is Socapex, the industry standard is now called SOCA because there are other manufacturers who create "Socapex" adaptors that mate to the original 19, 7 and 37 pin Socapex. So when we say SOCA, we are referring connectors that will mate to the standard created by Socapex and not just the brand Socapex. Our current brand of SOCA connectors is not Socapex.
Cable Cube™
Quick Reference Chart
Click Here
Dimensional Chart-Click Here

Dealer Pricing Available

Shopping Basket

Items 0
Subtotal $0.00
Note: All prices in US Dollars

Price Set
* Login Required

Click "Change" after Currency selection

Search by Keyword

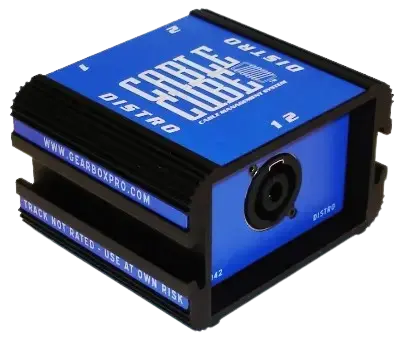

DISTRO (SKU: 10042)

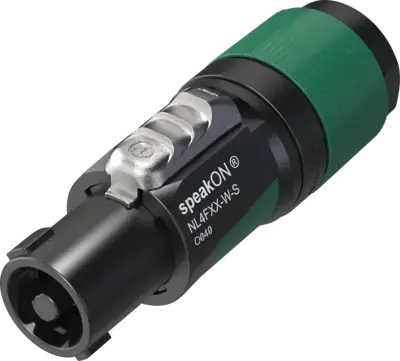

DISTRO (SKU: 10042)This is a break-out box that connects the first two contacts (pin 1+, 1-) of an NL4 connector to the first two contacts (pin 1+, 1-) of an NL4 and the other two contacts of the first NL4 connector (pin 2+, 2-) and connects them to the first two contacts (pin 1+, 1-) of a second NL4 connector.� ~ This has the same wiring as a COMBO that uses all NL2/Combo connectors. ~ Applications: This enables two (2) full range speakers to be connected to a single four (4) conductor speaker cable.
Price $94.00
Sale Price $70.50

Qty

More info ››

MATRIX (SKU: 10082)

MATRIX (SKU: 10082)The MATRIX is an adaptor box that breaks out an NL8 into two (2) NL4’s.  The first half of the NL8 connector (Pins 1+, 1-, 2+, 2-) connect to the same pins on the first NL4 connector. The second half of the NL8 (Pins 3+, 3-, 4+, 4-) connect respectively to Pin 1+, 1-, 2+, 2- of the second NL4.
Price $130.00
Sale Price $97.00

Qty

More info ››
