COMBO

COMBO
Click to enlarge image(s)

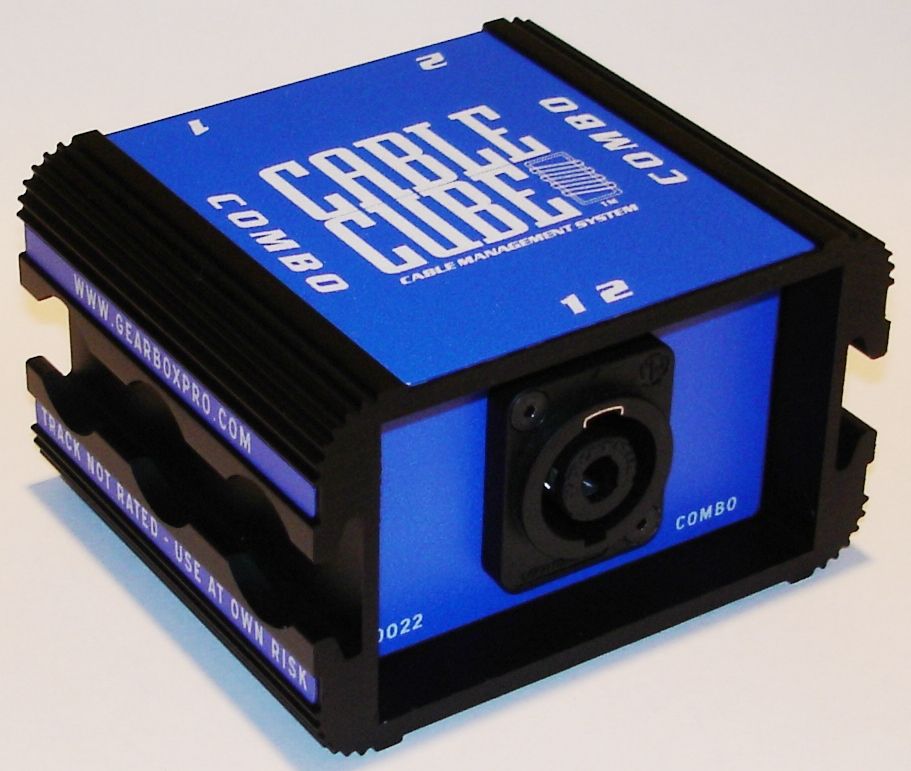

This is a break-out box that connects the first two contacts (pin 1+, 1-) of an NL4 connector to the contact pins on an NL2/combo connector and the other two contacts of the first NL4 connector (pin 2+, 2-) and connects them to the contact pins of a second NL2/combo connector.

This has the same wiring as a DISTRO that uses all NL4’s.

Applications: This enables two (2) full range speakers to be connected to a single four (4) conductor speaker cable (combining two speaker cables into one).  Due to the fact that only one set of contacts of each NL2/combo connectors are connected to only one half of the NL4 connector, only full range speakers can be connected.  Using a second COMBO (inverted), or any similar section of a box within the COMBO or DISTRO family of Cable Cube products, at the amplifier output position will combine two amplifier outputs into the single NL4 connector. Then a four (4) conductor speaker cable can be utilized to minimize cable spaghetti.
Drawing
Submit a Review...
Click Add to Cart to order this product.
Email info@gearboxpro.com with any questions about this or any of our other products.

Shopping Basket

Items: 0
Subtotal: $0.00
Note: All prices in US Dollars

Price Set

Click "Change" after Currency selection

Search by Keyword

DISTRO (SKU: 10042)DISTRO (SKU: 10042)This is a break-out box that connects the first two contacts (pin 1+, 1-) of an NL4 connector to the first two contacts (pin 1+, 1-) of an NL4 and the other two contacts of the first NL4 connector (pin 2+, 2-) and connects them to the first two contacts (pin 1+, 1-) of a second NL4 connector.� ~ This has the same wiring as a COMBO that uses all NL2/Combo connectors. ~ Applications: This enables two (2) full range speakers to be connected to a single four (4) conductor speaker cable.
MATRIX (SKU: 10082)MATRIX (SKU: 10082)The MATRIX is an adaptor box that breaks out an NL8 into two (2) NL4’s.  The first half of the NL8 connector (Pins 1+, 1-, 2+, 2-) connect to the same pins on the first NL4 connector. The second half of the NL8 (Pins 3+, 3-, 4+, 4-) connect respectively to Pin 1+, 1-, 2+, 2- of the second NL4.
