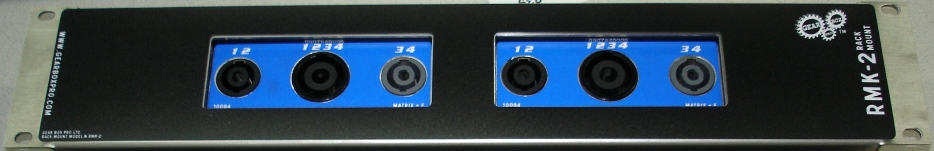

The RMK-2 is a convenient rack mount kit that raises the value of Cable Cube inventory. The RMK transforms them into a flexible, convertible amplifier rack patch panel. Depending on the direction a Cable Cube is loaded into the RMK, it will split or combine amplifier outputs. The RMK-2 accepts the following Cable Cube Profiles: OCTO, COMBO/MATRIX, DISTRO/MATRIX and the MATRIX+. A captive metal clip is used to secure the Cable Cube device into the RMK garage cavity. The Cable Cube System of reversible modules and related RMK’s provide even greater flexibility in speaker cabling design. For permanent installs and dedicated amp rack applications, see our SLS-Series Rack Patch products.
Please Note: The RMK-2 and RMK-4 units are Special Order Items, delivery times may vary.
Submit a Review...
Click Add to Cart to order this product.
Email firstname.lastname@example.org any questions about this or any of our other products.
DISTRO (SKU: 10042)This is a break-out box that connects the first two contacts (pin 1+, 1-) of an NL4 connector to the first two contacts (pin 1+, 1-) of an NL4 and the other two contacts of the first NL4 connector (pin 2+, 2-) and connects them to the first two contacts (pin 1+, 1-) of a second NL4 connector.� ~ This has the same wiring as a COMBO that uses all NL2/Combo connectors. ~ Applications: This enables two (2) full range speakers to be connected to a single four (4) conductor speaker cable.
MATRIX (SKU: 10082)The MATRIX is an adaptor box that breaks out an NL8 into two (2) NL4’s. The first half of the NL8 connector (Pins 1+, 1-, 2+, 2-) connect to the same pins on the first NL4 connector. The second half of the NL8 (Pins 3+, 3-, 4+, 4-) connect respectively to Pin 1+, 1-, 2+, 2- of the second NL4.
