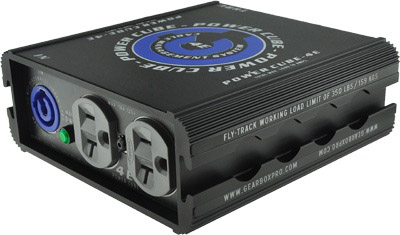

Power Cube® 4E (Left )

Power Cube® 4E (Left )
Back View
Click to enlarge image(s)
The Power Cube® 4E model is a passive A/C Splitter device, containing no active components or supplementary circuit interrupter (breaker) devices. A/C is supplied to the Power Cube® 4E through a 20-Amp PowerCON NAC3NPA inlet connector, directly wired to a 20-Amp PowerCON NAC3MPB outlet. This permits multiple Power Cubes to be connected end to end on a single circuit. All PowerCON inlets and outlets are parallel connected supporting a combined maximum electrical load of 12-16 amps depending on the rating of the power supply cord connected. On each side of the Power Cube 4E is an Edison 20-Amp T-Slot Duplex Receptacle for a total of four (4) Edison outlets. For desired ergonomic connectivity the 4E is available in right or left hand versions.

Right Hand Version
(not shown)
SKU: 22820  Please Specify if you are Purchasing RIGHT HAND VERSION


Technical Specs

Inputs:
1x Neutrik® 20-Amp PowerCON

Outputs:
1x 20-Amp Neutrik® PowerCON
2x 20-Amp Hubbell® Edison U-Ground Duplex Receptacle

Neutrik® Connectors above, are not
approved for disconnecting under load

Electrical Specs:
Total maximum load of
16-Amps, 120 V, 60hz

Electrically approved by special inspection for North America

Fly-Track Rating:
500 lbs / 226.8 kg
straight pull
w/single stud fly-clip

Dimensions: (LWH)
5.5” x 5.5” x 2.1”
39.75 mm x 139.75mm x 53.44mm

Weight:
2lb 5.6oz / 1.07kg

Features:

Virtually indestructible
extruded aluminum body

Integrated Fly-Track

Can be wired as a Stringer (in series)

Available in right or left hand versions

Five Year Limited Warranty
- All Power Cube® Products are protected by a limited five (5) year warranty covering
defects in materials and workmanship
PDF Information Sheet
Front View
