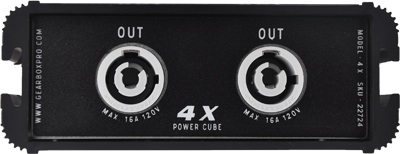

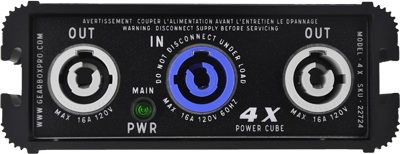

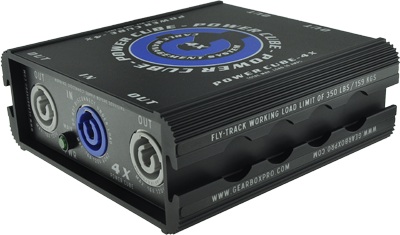

The Power Cube® 4X is a passive A/C Splitter device, containing no active components or supplementary circuit interrupter (breaker) devices inside. The supply inlet is a 20-Amp PowerCON that is parallel-connected with 12 Gauge wire to four (4) 20-Amp PowerCON outlets. On one end of the extruded housing is the PowerCON inlet with an outlet on each side of the inlet power connector. Parallel connected to the inlet connector is a status indicator lamp. On the opposite end of the box are the remaining two (2) NAC3FPX outlet connectors. Therefore, there are two (2) outlets on each side of the box forming an array of outlets in an ‘X’ configuration. All PowerCON inlets and outlets are parallel connected supporting a combined maximum electrical load of 16 Amps depending on the rating of the power supply cord connected. It is available in North American (120V) or European (220V) versions.
DISTRO (SKU: 10042)This is a break-out box that connects the first two contacts (pin 1+, 1-) of an NL4 connector to the first two contacts (pin 1+, 1-) of an NL4 and the other two contacts of the first NL4 connector (pin 2+, 2-) and connects them to the first two contacts (pin 1+, 1-) of a second NL4 connector.� ~ This has the same wiring as a COMBO that uses all NL2/Combo connectors. ~ Applications: This enables two (2) full range speakers to be connected to a single four (4) conductor speaker cable.
MATRIX (SKU: 10082)The MATRIX is an adaptor box that breaks out an NL8 into two (2) NL4’s. The first half of the NL8 connector (Pins 1+, 1-, 2+, 2-) connect to the same pins on the first NL4 connector. The second half of the NL8 (Pins 3+, 3-, 4+, 4-) connect respectively to Pin 1+, 1-, 2+, 2- of the second NL4.
